Medical Articulated Arms

As specialists for OEM solutions, we look back on a long track record of experience. We advise you when it comes to finding the perfect articulated arm for your application. We offer a wide range of sterilizable and disinfectable articulated arms with associated clamps and customized head components. Below we show you an extract from wide range of products.

These medical holders also may be needed to secure the tube of a mechanical ventilator, to position the tube of anasthesia inhalation or to support patients’ arms during surgery.

What makes these ideal for use in hospitals and other health care environments is their unique design. With the turn of a single knob, they can be clamped securely in place or released for repositioning. They hold their positions without risk of being jostled out of place and provide stable, safe and maintenance-free use throughout their lifetimes. The precise engineering and exceptional quality behind our products make them indispensable across a wide spectrum of medical applications where reliablility and stability are paramount.

For more than 40 years, our lineup has been considered the best articulated arms on the market. We’re also prepared to customize solutions to meet our customers’ needs no matter what they may be. We are happy to assist you in determining the ideal articulated arm for your specific application. Below are examples from our extensive product portfolio.



Print  Print data sheet

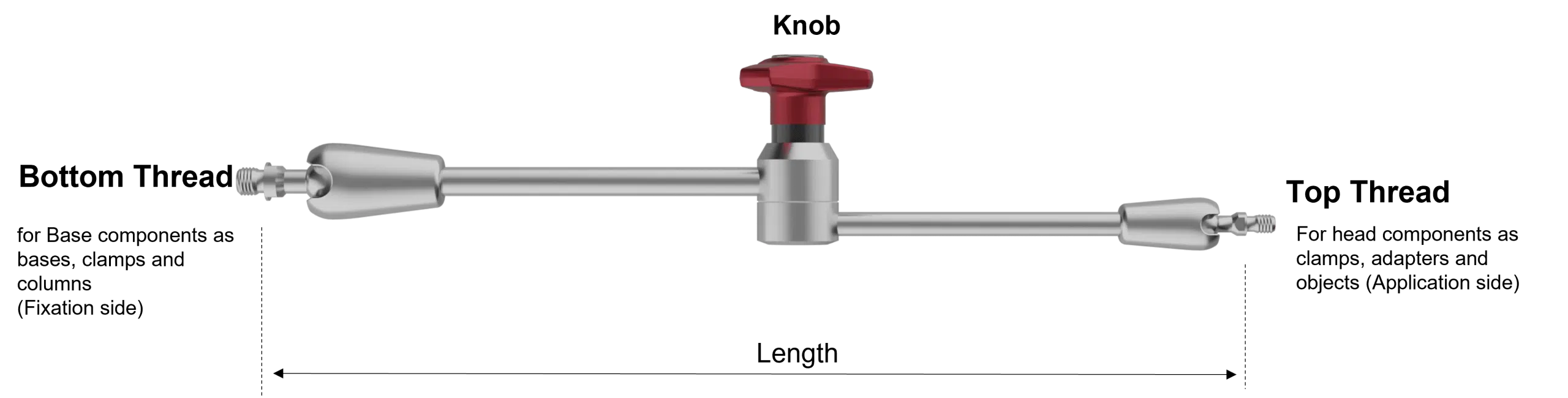

Articulated arms

134°C Sterilizable

Article # Type Length mm Bottom thread Top thread Knob Weight kg Holding Force (N)
4.051-VE XS-13 130 M6x1 M6x1 Stainless steel 0.25 25
4.060-VE XS-19 190 M6x1 M6x1 Stainless steel 0.30 10
2.860-VE 3800-28 280 M12x1 M8x1.25 Aluminium, red 0.80 60
2.760-VE 3800-40 400 M12x1 M8x1.25 Aluminium, red 0.90 45
2.790-VE 3800-55 550 M12x1 M8x1.25 Aluminium, red 1.00 35
3.530-VE 4800-40 400 M12x1 M8x1.25 Aluminium, red 1.85 95
3.520-VE 4800-55 550 M12x1 M8x1.25 Aluminium, red 2.00 70
2.101-VE 5800-50 560 M12x1.75 M10x1.5 Plastic, black 3.45 80

Articulated arms

Non-sterilizable

Article # Type Length mm Bottom thread Top thread Knob Weight kg Holding Force (N)
7.330-VE 3600-28 280 M12x1 M8x1.25 plastic, grey 0.78 30
7.335-VE 3600-28 S 280 M12x1 M8x1.25 plastic, grey 0.78 70
7.340-VE 3600-40 400 M12x1 M8x1.25 plastic, grey 0.9 20
7.345-VE 3600-40 S 400 M12x1 M8x1.25 plastic, grey 0.86 50
7.365-VE 3600-55 S 550 M12x1 M8x1.25 plastic, grey 0.97 35
2.510-VE 3600-70 700 M12x1 M8x1.25 plastic, grey 1.25 25
2.610-VE 3600-90 900 M12x1 M8x1.25 plastic, grey 1.40 15
3.910-VE 3500-90 900 M12x1 - plastic, grey 1.03 15
7.440-VE 4600-40 400 M12x1 M8x1.25 plastic, grey 1.90 90
7.460-VE 4600-55 550 M12x1 M8x1.25 plastic, grey 2.05 65
7.470-VE 4600-70 730 M12x1 M8x1.25 plastic, grey 2.29 50
2.212-VE 4600-100 1000 M12x1 M8x1.25 plastic, grey 2.70 30
7.530-VE 5600-32 320 M12x1 M12x1 Aluminium, red 2.50 170
7.550-VE 5600-46 460 M12x1 M12x1 Aluminium, red 2.70 115
7.570-VE 5600-70 730 M12x1 M12x1 Aluminium, red 3.30 70
2.260-VE 6600-32 320 M12x1 M12x1 Aluminium, red 2.93 230
2.270-VE 6600-46 460 M12x1 M12x1 Aluminium, red 3.13 155
2.275-VE 6600-56 560 M12x1 M12x1 Aluminium, red 3.33 125
2.280-VE 6600-70 730 M12x1 M12x1 Aluminium, red 3.58 100

S: stronger version
