FISSO Machine Vision Laboratory Kit OE20.00
Machine Vision Laboratory Kit for Precise Camera Lights or sensor Positioning
The FISSO Machine Vision Laboratory Kit OE20.00 is a complete mounting solution designed for machine vision laboratories, research facilities and vision system development environments. The modular system allows precise positioning of cameras, sensors and lighting components while maintaining maximum stability.
Built on the renowned FISSO modular mounting platform, this laboratory kit offers maximum flexibility, rigidity, and repeatability, making it ideal for R&D departments, prototype development, quality assurance, and vision system integration.

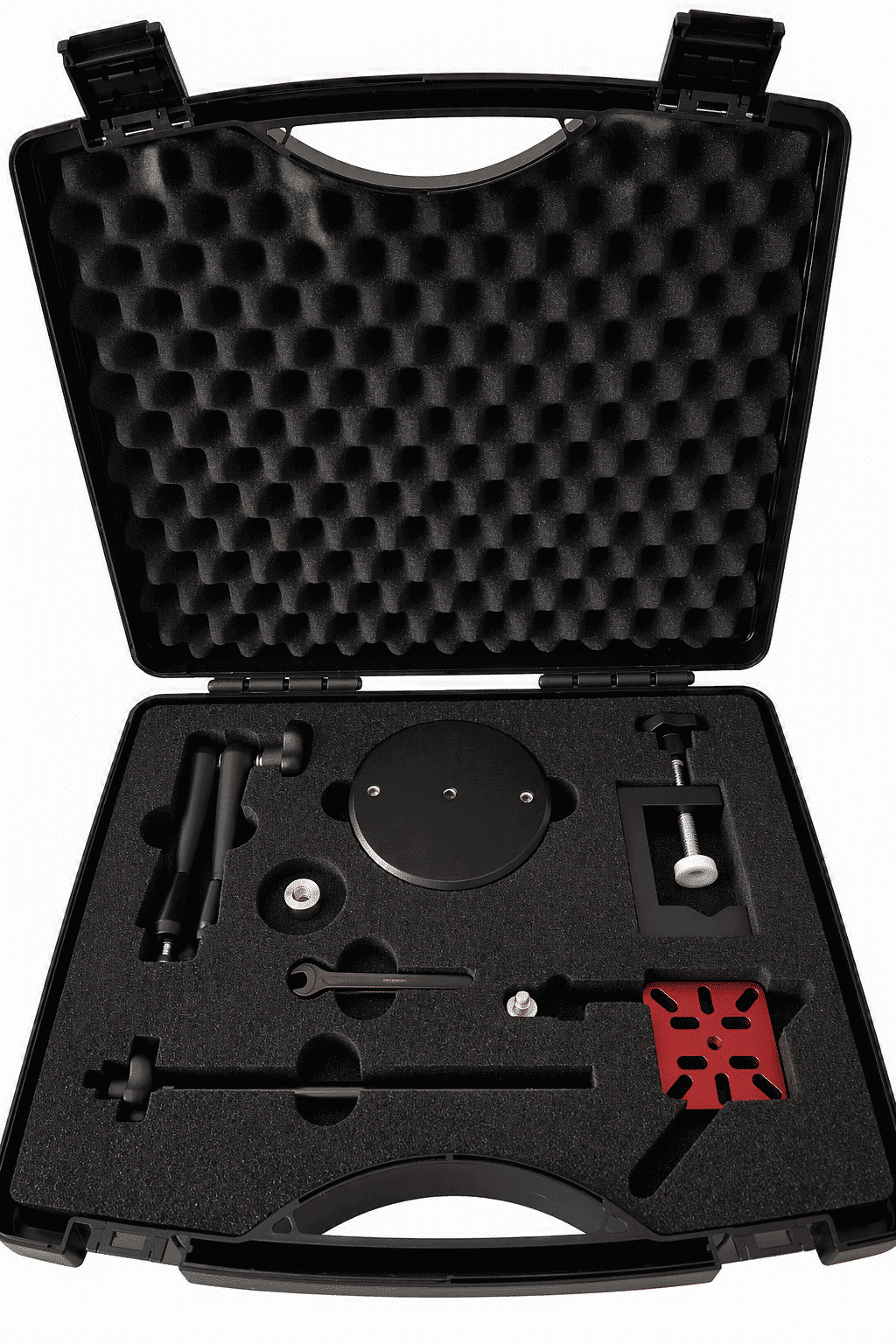

Included Components
- FISSO 85.030 Universal Mounting Plate
- Universal camera mounting plate suitable for machine vision cameras and accessories. M6
- Can also be used for direct mounting onto aluminum profiles and custom fixtures.
- Table Clamp 5.202
- Robust table clamp for quick and secure installation on laboratory benches and workstations. M6
- Articulated Arm 4.120
- Precision positioning arm providing smooth adjustment and high holding force. M6 – M6
- Steel Base 5.041
- Solid mounting interface ensuring maximum stability and flexible positioning. M6
- Column 5.404
- Provides additional height and positioning flexibility. M6 – M6
- 1/4″ Male to 3/8″ m Adapter
- Enables compatibility with a wide range of industrial cameras, sensors, lighting systems, and accessories
- Spigot adapter M6 w – 3/8″ w Art.-Nr. 93.766
- Enables compatibility with a wide range of industrial cameras, sensors, lighting systems, and accessories
Key Benefits
✅ Fast and precise positioning of cameras and sensors
✅ High rigidity for vibration-free image acquisition
✅ Modular design for future expansion
✅ Compatible with industrial cameras and machine vision equipment
✅ Easy installation and adjustment
✅ Ideal for laboratories, R&D, testing, and proof-of-concept setups
Typical Applications
- Machine Vision Development
- Camera Testing
- Optical Inspection
- Laboratory Automation
- Industrial Imaging
- AI Vision Projects
- Quality Control Systems
- Educational and Research Laboratories
Why Choose FISSO for Machine Vision Applications?
FISSO mounting systems are known worldwide for their exceptional rigidity, durability and positioning accuracy. Compared with conventional camera mounting solutions, FISSO articulated arms provide superior stability and repeatability, making them particularly suitable for demanding machine vision applications.
The modular design allows users to easily adapt the setup to changing laboratory requirements. Cameras, sensors, lighting systems and optical components can be repositioned quickly while maintaining reliable support and vibration-free operation.
